Project 677 Lada class / Project 1650 Amur class Diesel-Electric Torpedo Submarine

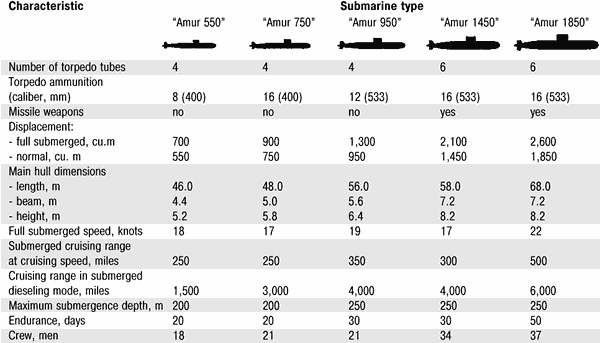

Specifications
Designation            Project 677 Lada class
                             Project 1650 Amur class [export version]
Designer                Rubin
Builder                  Admiralty Shipyard
Displacement:        1,675 tons surfaced
                            2,800 tons surfaced
Speed (kts):           21 knots Full submerged speed
Dimensions (m):     67 meters long
                            7.1 meters beam
                            x? meters draft
Propulsion:            diesel and electric motors
Diving depth:         250 meters maximum submergence depth
Range:                  6,000 miles submerged dieseling mode
                           650 miles Submerged at cruising speed
Armament:
Missiles:
# Novator Al'fa or Oniks SSM
# RPK-6/SS-N-16 Vodopod/Stallion ASR
Torpedoes:    6/533 mm VA-111 (w: c/nucl)    Total: 18
Sonar:
    * Active & passive bow & flank arrays
    * Towed array

(Globalsecurity)
